ALOGIC USB-C Trippel Display Dockningsstation 100W PD

Comprehensive Connectivity

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card

The dock also features lock slots for securing it to a desk when being used in an office or a hot-desking environment.

*Refer to the resolution support table for details on different resolutions supported with the dock.

Plug and Play: Driverless

With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.

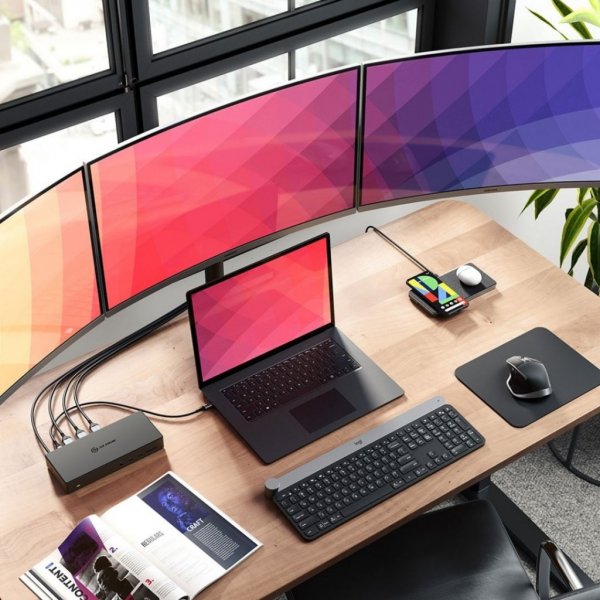

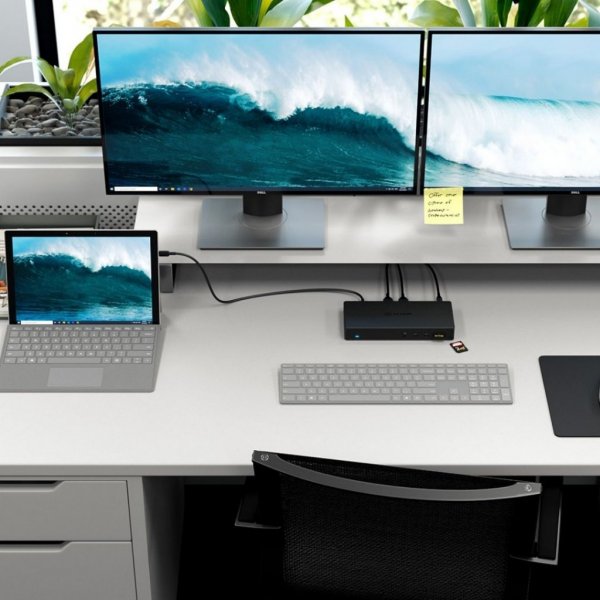

Triple Display

The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.

*Refer to the resolution support table for details on different resolutions supported with the dock.

100W Laptop Charging/Power Delivery

The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.

Not all USB-C ports support video output. Many Windows and Chromebook computers have multiple USB-C ports, but only support video output from one or two of them. If using a Windows or Chromebook machine it is important to ensure that you plug the device into a port/ports which supports video output for it to be able to show video on external monitors.

DisplayPort and Thunderbolt icons

Many USB-C ports that have no labelling support video output, however, USB-C ports which have a DisplayPort logo or Intel Thunderbolt logo printed next to them almost certainly support video output and you should look for these icons next to the ports on your computer.

If in doubt about whether a USB-C port supports video output, consult the user manual for your computer or the support information on the manufacturer’s website.

The device can be used with USB-C ports which do not support video output, however, you will not be able to connect the HDMI ports to external monitors and show video. The other ports (Ethernet, audio, card readers and USB ports) will be functional.

Specifications

Compliance: FCC, CE, RoHS

Physical Characteristics: Product Dimensions (mm): 2100 x 880 x 290mm (L x W x H) | Colour: Black | Weight (product): 360g |

Materials: ABS

Warranty: 2 years

Output: 2 x DisplayPort, 1 x HDMI 2 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support, 2 x USB-A 3.1 Gen1 (5G), 2 x USB-A 2.0, 1 x Audio / Microphone Jack, 1 x RJ45 Ethernet 1Gbps, 1 x SD Card

Input: 1 x USB-C port

Compatibility: Compatible with all computers with a USB-C port. Requires computer operating Windows 7 and above.

Resolution: Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4 HBR3 with DSC enabled host* | *See resolution support tables below for maximum outputs.

Package Includes: 1 x Dock, 1 x 170W AC Power Adapter, 1 x US; 1 x UK; 1 x EU; 1 x AU Power Cord, 1 x User Manual

Device Compatibility: Microsoft
